Debugging/Windows

Security

haewon83 2023. 5. 3. 20:59



Security Reference Monitor(SRM)

  • SRM은 Security Access Check, Privilege Check, Auditing Events를 구현하는 Kernel-Mode Routine



Local Security Authority subsystem(LSASS)

  • 대부분의 Security Operation 담당 User-Mode Process
  • LSASS policy database는 아래 관련 정보 보관
    • Logon 정보
    • Cached Logon 정보
    • 권한 및 감사 정보
    • Domain Trust 정보
  • 대부분의 LSA Policy 함수는 Policy Object에 대한 Handle이 필요
    • 이를 위해 LsaOpenPolicy 함수 사용



https://learn.microsoft.com/en-us/windows/win32/secmgmt/opening-a-policy-object-handle

#include <windows.h>

#define TARGET_SYSTEM_NAME L"mysystem"

LSA_HANDLE GetPolicyHandle()
{
  LSA_OBJECT_ATTRIBUTES ObjectAttributes;
  WCHAR SystemName[] = TARGET_SYSTEM_NAME;
  USHORT SystemNameLength;
  LSA_UNICODE_STRING lusSystemName;
  NTSTATUS ntsResult;
  LSA_HANDLE lsahPolicyHandle;

  // Object attributes are reserved, so initialize to zeros.
  ZeroMemory(&ObjectAttributes, sizeof(ObjectAttributes));

  //Initialize an LSA_UNICODE_STRING to the server name.
  SystemNameLength = wcslen(SystemName);
  lusSystemName.Buffer = SystemName;
  lusSystemName.Length = SystemNameLength * sizeof(WCHAR);
  lusSystemName.MaximumLength = (SystemNameLength+1) * sizeof(WCHAR);

  // Get a handle to the Policy object.
  ntsResult = LsaOpenPolicy(
        &lusSystemName,    //Name of the target system.
        &ObjectAttributes, //Object attributes.
        POLICY_ALL_ACCESS, //Desired access permissions.
        &lsahPolicyHandle  //Receives the policy handle.
    );

  if (ntsResult != STATUS_SUCCESS)
  {
    // An error occurred. Display it as a win32 error code.
    wprintf(L"OpenPolicy returned %lu\n",
      LsaNtStatusToWinError(ntsResult));
    return NULL;
  }
  return lsahPolicyHandle;
}





## The LsaLookupSids function looks up the names that correspond to an array of security identifiers (SIDs).
NTSTATUS LsaLookupSids(
  [in]  LSA_HANDLE                  PolicyHandle,
  [in]  ULONG                       Count,
  [in]  PSID                        *Sids,
  [out] PLSA_REFERENCED_DOMAIN_LIST *ReferencedDomains,
  [out] PLSA_TRANSLATED_NAME        *Names
);

## The LsaLookupNames function retrieves the security identifiers (SIDs) that correspond to an array of user, group, or local group names.
NTSTATUS LsaLookupNames(
  [in]  LSA_HANDLE                  PolicyHandle,
  [in]  ULONG                       Count,
  [in]  PLSA_UNICODE_STRING         Names,
  [out] PLSA_REFERENCED_DOMAIN_LIST *ReferencedDomains,
  [out] PLSA_TRANSLATED_SID         *Sids
);



Security Account Manager(SAM)

  • LSASS 프로세스 Context 하에서 실행되는 서비스로 local SAM database를 관리
  • SAM에는 local(Domain Controller가 아닌)에서 생성한 User와 Group 정보를 포함



Active Directory

  • User, Group, Computer, User Rights와 Domain 및 Forest 기반 정보를 담고 있는 Database
  • 이 정보는 Domain 내에 각 Domain Controller에 있는 local AD database에 저장
  • AD Database 관련 기능은 LSASS.exe 프로세스에 로드되는 Library에 의해 제공
  • AD 관련 API
    • AD Replication
      • Trigger, Perform, Translate, Add, Gather, Get 등 제공
    • LDAP
      • LDAP은 TCP/IP Stack 위에서 실행되는 Directory Service Protocol
      • Connect, Search, Modify 등 제공

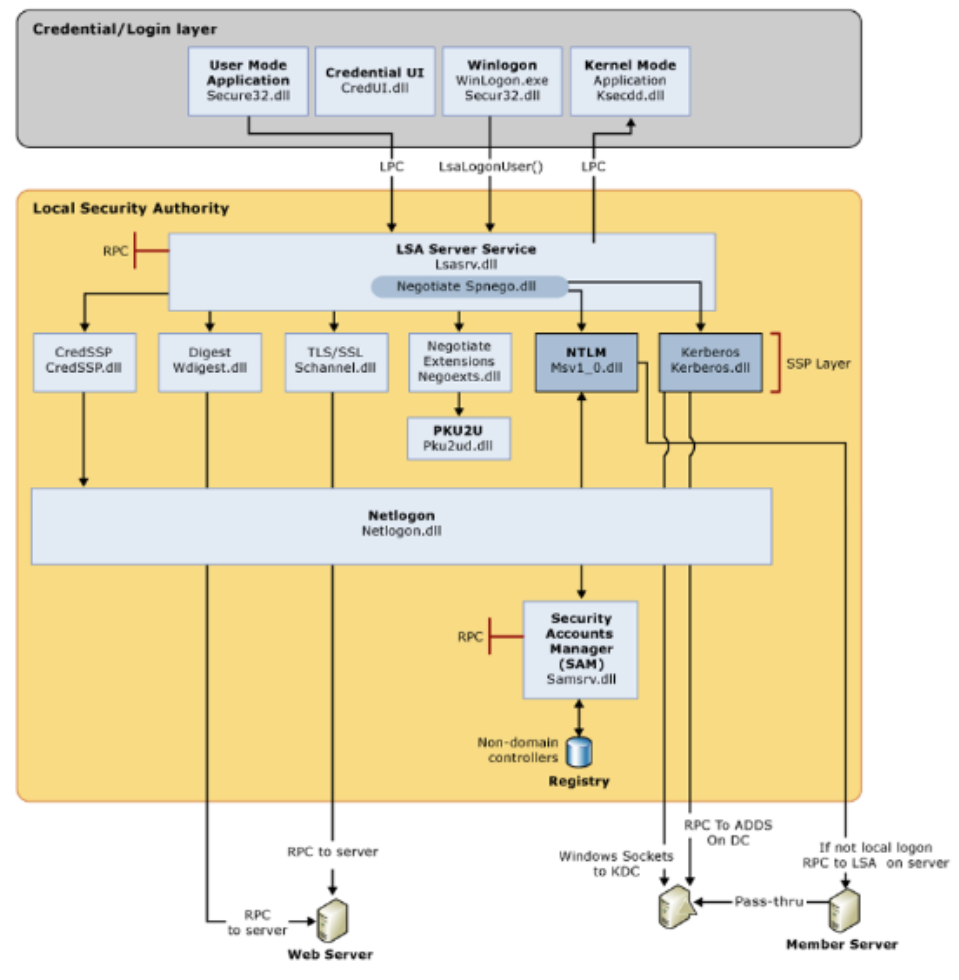

Authentication Packages

  • Authentication Package들은 LSASS 프로세스에 로드되는 Library로 이 Library들은 Security Support Provider Interface(SSPI)의 Subcomponent
  • 이 Subcomponent들은 각각 Kerberos, NTLM, Digest, CredSSP와 SSL을 구현
  • 한 가지 negotiation package는 직접적인 인증 관련 Library가 아니라, SSPI Client가 인증 Package를 직접 선택하지 않아도 인증받을 수 있도록 해주는 역할
  • negotiation package의 경우 우선, Kerberos 인증을 시도하고 실패하면 NTLM으로 fall back 처리





  • Security Support Provider Interface(SSPI)
    • SSPI는 Windows에서 지원하는 여러 Security Support Provider(SSP)를 위한 공통 인터페이스를 제공
    • 따라서, 개발자들은 인증 프로토콜을 완벽히 이해할 필요없이, SSPI가 제공하는 인터페이스를 통해서 Client/Server 보안 구현 가능
  • Kerberos
  • NTLM



LogonUI

  • LogonUI.exe 프로세스는 Logon 시 Credential 정보를 획득하기 위한 사용자 인터페이스를 제공하는데 사용되는 User-Mode 프로세스
  • LogonUI는 Credential Provider를 이용하여, Username/Password, Smartcard, Fingerprint 등 다양한 Logon Credential Input 형태를 제공
  • Credential Provider는 LogonUI.exe 프로세스에 DLL로 로드
  • Winlogon은 SAS event(Ctrl + Alt + Delete)를 받으면 LogonUI에게 이를 알려 Credential Provider가 제공하는 화면을 표시
  • How to debug a Credential Provider locally : https://www.paralint.com/2011/03/how-to-debug-a-credential-provider-locally

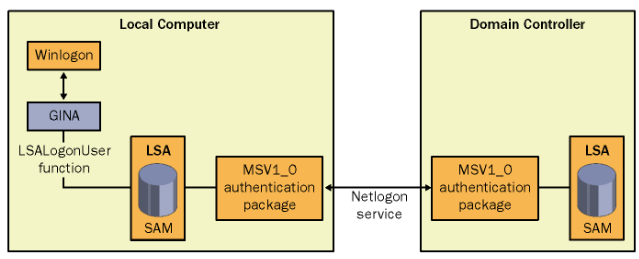

Netlogon

  • Netlogon(netlogon.dll)은 LSASS 프로세스 Context 내에서 실행 중인 서비스로 Secure Channel을 구현
  • Client와 Domain Controller는 preconfigured shared secret(Computer의 Machine Account Password)을 이용하여 계산된 session key를 통해 암호화된 Secure Channel을 통해 통신
  • 이 Secure Channel을 통해 Client는 사용자로부터 전달받은 Credential 정보를 Domain Controller에게 안전하게 전달
  • Enabling debug logging for the Netlogon service : https://learn.microsoft.com/en-us/troubleshoot/windows-client/windows-security/enable-debug-logging-netlogon-service



Secure Channel 확인 및 복구 방안

https://learn.microsoft.com/en-us/troubleshoot/windows-server/windows-security/secure-channel-problems-detected

https://glennopedia.com/2016/02/25/how-to-reset-secure-channel-on-a-domain-controller/



To enable Netlogon logging

Open a Command Prompt window (administrative Command Prompt window for Windows Server 2012 R2 and later versions).

Type the following command, and then press Enter:
Nltest /DBFlag:2080FFFF

It's typically unnecessary to stop and restart the Netlogon service for Windows Server 2012 R2 or later to enable Netlogon logging. Netlogon-related activity is logged to %windir%\debug\netlogon.log.
Verify new writes to this log to determine whether a restart of the Netlogon service is necessary.
If you have to restart the service, open a Command Prompt window (administrative Command Prompt window for Windows 10, and Windows Server 2012 R2 and later versions). Then run the following commands:

net stop netlogon
net start netlogon

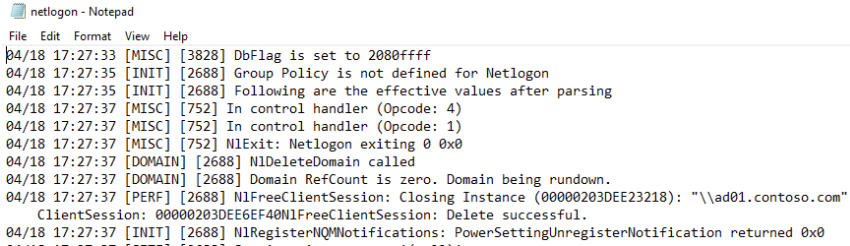

%windir%\debug\netlogon.log



Access Checks



SECURITY_DESCRIPTOR

typedef struct _SECURITY_DESCRIPTOR {
  BYTE                        Revision;
  BYTE                        Sbz1;
  SECURITY_DESCRIPTOR_CONTROL Control;
  PSID                        Owner;
  PSID                        Group;
  PACL                        Sacl;
  PACL                        Dacl;
} SECURITY_DESCRIPTOR, *PISECURITY_DESCRIPTOR;



BOOLEAN SeAccessCheck(
  [in]  PSECURITY_DESCRIPTOR      SecurityDescriptor,
  [in]  PSECURITY_SUBJECT_CONTEXT SubjectSecurityContext,
  [in]  BOOLEAN                   SubjectContextLocked,
  [in]  ACCESS_MASK               DesiredAccess,
  [in]  ACCESS_MASK               PreviouslyGrantedAccess,
  [out] PPRIVILEGE_SET            *Privileges,
  [in]  PGENERIC_MAPPING          GenericMapping,
  [in]  KPROCESSOR_MODE           AccessMode,
  [out] PACCESS_MASK              GrantedAccess,
  [out] PNTSTATUS                 AccessStatus
);

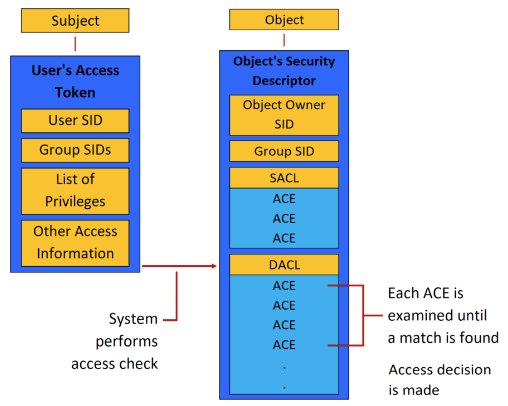

  • 사용자가 Windows에 Logon 할 때, Security Subsystem은 User와 Group의 SID를 Security Access Token에 설정
  • Security Access Token은 모든 Application Process에 부여
  • Application이 File, Registry Key등 Object에 접근하려고 할 때마다, Security Subsystem을 통해 접근 가능 여부를 결정
  • SRM은 Access Token의 User와 Group SID를 접근하고자 하는 Object의 Security Desriptor내의 접근 권한과 비교
  • 만약 User의 SID가 Security Descriptor의 ACL에서 Full Access 권한을 부여받으면, 해당 User가 실행한 Application은 Object에 Full Access가 가능
  • https://learn.microsoft.com/en-us/windows-hardware/drivers/debugger/-token



6: kd> dt nt!_TOKEN
   +0x000 TokenSource      : _TOKEN_SOURCE
   +0x010 TokenId          : _LUID
   +0x018 AuthenticationId : _LUID
   +0x020 ParentTokenId    : _LUID
   +0x028 ExpirationTime   : _LARGE_INTEGER
   +0x030 TokenLock        : Ptr64 _ERESOURCE
   +0x038 ModifiedId       : _LUID
   +0x040 Privileges       : _SEP_TOKEN_PRIVILEGES
   +0x058 AuditPolicy      : _SEP_AUDIT_POLICY
   +0x078 SessionId        : Uint4B
   +0x07c UserAndGroupCount : Uint4B
   +0x080 RestrictedSidCount : Uint4B
   +0x084 VariableLength   : Uint4B
   +0x088 DynamicCharged   : Uint4B
   +0x08c DynamicAvailable : Uint4B
   +0x090 DefaultOwnerIndex : Uint4B
   +0x098 UserAndGroups    : Ptr64 _SID_AND_ATTRIBUTES
   +0x0a0 RestrictedSids   : Ptr64 _SID_AND_ATTRIBUTES
   +0x0a8 PrimaryGroup     : Ptr64 Void
   +0x0b0 DynamicPart      : Ptr64 Uint4B
   +0x0b8 DefaultDacl      : Ptr64 _ACL
   +0x0c0 TokenType        : _TOKEN_TYPE
   +0x0c4 ImpersonationLevel : _SECURITY_IMPERSONATION_LEVEL
   +0x0c8 TokenFlags       : Uint4B
   +0x0cc TokenInUse       : UChar
   +0x0d0 IntegrityLevelIndex : Uint4B
   +0x0d4 MandatoryPolicy  : Uint4B
   +0x0d8 LogonSession     : Ptr64 _SEP_LOGON_SESSION_REFERENCES
   +0x0e0 OriginatingLogonSession : _LUID
   +0x0e8 SidHash          : _SID_AND_ATTRIBUTES_HASH
   +0x1f8 RestrictedSidHash : _SID_AND_ATTRIBUTES_HASH
   +0x308 pSecurityAttributes : Ptr64 _AUTHZBASEP_SECURITY_ATTRIBUTES_INFORMATION
   +0x310 Package          : Ptr64 Void
   +0x318 Capabilities     : Ptr64 _SID_AND_ATTRIBUTES
   +0x320 CapabilityCount  : Uint4B
   +0x328 CapabilitiesHash : _SID_AND_ATTRIBUTES_HASH
   +0x438 LowboxNumberEntry : Ptr64 _SEP_LOWBOX_NUMBER_ENTRY
   +0x440 LowboxHandlesEntry : Ptr64 _SEP_CACHED_HANDLES_ENTRY
   +0x448 pClaimAttributes : Ptr64 _AUTHZBASEP_CLAIM_ATTRIBUTES_COLLECTION
   +0x450 TrustLevelSid    : Ptr64 Void
   +0x458 TrustLinkedToken : Ptr64 _TOKEN
   +0x460 IntegrityLevelSidValue : Ptr64 Void
   +0x468 TokenSidValues   : Ptr64 _SEP_SID_VALUES_BLOCK
   +0x470 IndexEntry       : Ptr64 _SEP_LUID_TO_INDEX_MAP_ENTRY
   +0x478 DiagnosticInfo   : Ptr64 _SEP_TOKEN_DIAG_TRACK_ENTRY
   +0x480 BnoIsolationHandlesEntry : Ptr64 _SEP_CACHED_HANDLES_ENTRY
   +0x488 SessionObject    : Ptr64 Void
   +0x490 VariablePart     : Uint8B

6: kd> !process 0 0 lsass.exe
PROCESS ffffd5828c176080 ## <---
    SessionId: 0  Cid: 02d4    Peb: e2444d7000  ParentCid: 0228
    DirBase: 407237000  ObjectTable: ffffa3076368d9c0  HandleCount: 1080.
    Image: lsass.exe

6: kd> !process ffffd5828c176080 1
PROCESS ffffd5828c176080
    SessionId: 0  Cid: 02d4    Peb: e2444d7000  ParentCid: 0228
    DirBase: 407237000  ObjectTable: ffffa3076368d9c0  HandleCount: 1080.
    Image: lsass.exe
    VadRoot ffffd5828c9fcb90 Vads 148 Clone 0 Private 1322. Modified 109. Locked 3.
    DeviceMap ffffa30761a136c0
    Token                             ffffa307653be7f0 ## <---
    ElapsedTime                       00:00:38.352
    UserTime                          00:00:00.015
    KernelTime                        00:00:00.000
    QuotaPoolUsage[PagedPool]         121400
    QuotaPoolUsage[NonPagedPool]      25384
    Working Set Sizes (now,min,max)  (3720, 50, 345) (14880KB, 200KB, 1380KB)
    PeakWorkingSetSize                3664
    VirtualSize                       2101338 Mb
    PeakVirtualSize                   2101338 Mb
    PageFaultCount                    4170
    MemoryPriority                    BACKGROUND
    BasePriority                      9
    CommitCharge                      1582

6: kd> !exts.token -n ffffa307653be7f0
_TOKEN 0xffffa307653be7f0
TS Session ID: 0
User: S-1-5-18 (Well Known Group: NT AUTHORITY\SYSTEM)
User Groups:
 00 S-1-5-32-544 (Alias: BUILTIN\Administrators)
    Attributes - Default Enabled Owner
 01 S-1-1-0 (Well Known Group: localhost\Everyone)
    Attributes - Mandatory Default Enabled
 02 S-1-5-11 (Well Known Group: NT AUTHORITY\Authenticated Users)
    Attributes - Mandatory Default Enabled
 03 S-1-16-16384 (Label: Mandatory Label\System Mandatory Level)
    Attributes - GroupIntegrity GroupIntegrityEnabled
Primary Group: S-1-5-18 (Well Known Group: NT AUTHORITY\SYSTEM)
Privs:
 02 0x000000002 SeCreateTokenPrivilege            Attributes - Enabled
 03 0x000000003 SeAssignPrimaryTokenPrivilege     Attributes -
 04 0x000000004 SeLockMemoryPrivilege             Attributes - Enabled Default
 05 0x000000005 SeIncreaseQuotaPrivilege          Attributes -
 07 0x000000007 SeTcbPrivilege                    Attributes - Enabled Default
 08 0x000000008 SeSecurityPrivilege               Attributes -
 09 0x000000009 SeTakeOwnershipPrivilege          Attributes -
 10 0x00000000a SeLoadDriverPrivilege             Attributes -
 11 0x00000000b SeSystemProfilePrivilege          Attributes - Enabled Default
 12 0x00000000c SeSystemtimePrivilege             Attributes -
 13 0x00000000d SeProfileSingleProcessPrivilege   Attributes - Enabled Default
 14 0x00000000e SeIncreaseBasePriorityPrivilege   Attributes - Enabled Default
 15 0x00000000f SeCreatePagefilePrivilege         Attributes - Enabled Default
 16 0x000000010 SeCreatePermanentPrivilege        Attributes - Enabled Default
 17 0x000000011 SeBackupPrivilege                 Attributes -
 18 0x000000012 SeRestorePrivilege                Attributes -
 19 0x000000013 SeShutdownPrivilege               Attributes -
 20 0x000000014 SeDebugPrivilege                  Attributes - Enabled Default
 21 0x000000015 SeAuditPrivilege                  Attributes - Enabled Default
 22 0x000000016 SeSystemEnvironmentPrivilege      Attributes -
 23 0x000000017 SeChangeNotifyPrivilege           Attributes - Enabled Default
 25 0x000000019 SeUndockPrivilege                 Attributes -
 28 0x00000001c SeManageVolumePrivilege           Attributes -
 29 0x00000001d SeImpersonatePrivilege            Attributes - Enabled Default
 30 0x00000001e SeCreateGlobalPrivilege           Attributes - Enabled Default
 31 0x00000001f SeTrustedCredManAccessPrivilege   Attributes -
 32 0x000000020 SeRelabelPrivilege                Attributes -
 33 0x000000021 SeIncreaseWorkingSetPrivilege     Attributes - Enabled Default
 34 0x000000022 SeTimeZonePrivilege               Attributes - Enabled Default
 35 0x000000023 SeCreateSymbolicLinkPrivilege     Attributes - Enabled Default
 36 0x000000024 SeDelegateSessionUserImpersonatePrivilege  Attributes - Enabled Default
Authentication ID:         (0,3e7)
Impersonation Level:       Anonymous
TokenType:                 Primary ## <---
Source: *SYSTEM*           TokenFlags: 0x2000 ( Token in use )
Token ID: 7f39             ParentToken ID: 0
Modified ID:               (0, 8b03)
RestrictedSidCount: 0      RestrictedSids: 0x0000000000000000
OriginatingLogonSession: 0
PackageSid: (null)
CapabilityCount: 0      Capabilities: 0x0000000000000000
LowboxNumberEntry: 0x0000000000000000
Security Attributes:
Unable to get the offset of nt!_AUTHZBASEP_SECURITY_ATTRIBUTE.ListLink
Process Token TrustLevelSid: (null)





Security Identifier (SIDs)

  • Windows는 User, Group, Computer 같은 Account에 Unique한 SID를 부여
  • SID를 이용하여, File / Folder / Database 등과 같은 자원에 대해 Access Check를 수행
  • SID는 다음과 같은 형태로 구성 : S-1-5-21-1931071232-1247330687-1096122002-500
    • 첫 번째 S-1-5-21은 Windows NT를 의미 : S-1-5-21
    • 그 다음 3개 Block은 Windows Domain 또는 Workgroup을 구분 : 1931071232-1247330687-1096122002
    • 마지막 숫자가 User 또는 Group을 구분 : 500 ## administrator SID



C:\Users\Administrator\Downloads\SysinternalsSuite>PsGetsid64.exe  /?

PsGetSid v1.46 - Translates SIDs to names and vice versa
Copyright (C) 1999-2023 Mark Russinovich
Sysinternals - www.sysinternals.com


Usage: PsGetsid64.exe [\\computer[,computer2[,...] | @file] [-u Username [-p Password]]] [account | SID]
     -u         Specifies optional user name for login to
                remote computer.
     -p         Specifies optional password for user name. If you omit this
                you will be prompted to enter a hidden password.
     account    PsGetSid will report the SID for the specified user account
                rather than the computer.
     SID        PsGetSid will report the account for the specified SID.
     computer   Direct PsGetSid to perform the command on the remote
                computer or computers specified. If you omit the computer
                name PsGetSid runs the command on the local system,
                and if you specify a wildcard (\\*), PsGetSid runs the
                command on all computers in the current domain.
     @file      PsGetSid will execute the command on each of the computers listed
                in the file.
     -nobanner  Do not display the startup banner and copyright message.

C:\Users\Administrator\Downloads\SysinternalsSuite>PsGetsid64.exe administrator

PsGetSid v1.46 - Translates SIDs to names and vice versa
Copyright (C) 1999-2023 Mark Russinovich
Sysinternals - www.sysinternals.com

SID for CONTOSO\administrator:
S-1-5-21-1931071232-1247330687-1096122002-500

C:\Users\Administrator\Downloads\SysinternalsSuite>PsGetsid64.exe S-1-5-21-1931071232-1247330687-1096122002-500

PsGetSid v1.46 - Translates SIDs to names and vice versa
Copyright (C) 1999-2023 Mark Russinovich
Sysinternals - www.sysinternals.com

Account for S-1-5-21-1931071232-1247330687-1096122002-500:
User: CONTOSO\administrator



Impersonation and Tokens

  • Token은 인증이 정상적으로 완료된 이후에 Logon 과정에서 생성
  • 개별 Process와 Thread에서 Token 확인 가능
  • Token은 Token이 속한 User Account에 대한 정보(Privilege와 Group Membership 등)를 담고 있음
  • Token 종류 : Primary, Impersonation, Restricted, Filtered Admin
  • Impersonation Token은 Service Process 내의 Thread가 해당 Process의 Security Context가 아닌 Service를 사용하는 Client의 Security Context로 잠시 사용하는 유형
  • https://blog.palantir.com/windows-privilege-abuse-auditing-detection-and-defense-3078a403d74e
Primary tokens function as described and are used to present the default security information for a process or thread.

Impersonation allows for a thread to perform an operation using an access token from another user or client.
Impersonation tokens are typically used in client/server communication.
For example, when a user accesses an SMB file share, the server needs a copy of the user’s token to validate that the user has sufficient permissions.
The executing server-side thread includes an impersonation token for the user in addition to the thread’s primary token, and uses the impersonation token to perform access checks for the user’s actions.

Restricted tokens (also known as a filtered admin token) are a subset of primary or impersonation tokens that have been modified to control privileges or permissions.
Restricted access tokens allow the system to remove privileges, add deny-only access control entries, or perform other access rights changes.

Even though the user in question is a local administrator, the unelevated cmd.exe shell carries a token restricted to only a handful of privileges.
When elevated to run as administrator, the process carries the user’s primary token with a larger list of privileges:



Security Descriptor

  • Security Descriptor에는 다음과 같은 정보가 포함
    • 누가 Object를 소유하고 있는지
    • 누가 Object에 접근이 가능한지
    • Object에 무엇을 할 수 있는지
    • 감사 로그의 수준
  • Security Descriptor는 여러 Access Control Entry(ACE)들로 구성되며 이 ACE들로 Access Control List(ACL)을 구성
  • Object의 Security Descriptor를 문자로 표현하기 위해 Security Descriptor Definition Language(SDDL)를 사용
    • SDDL은 DACL과 SACL로 구성
    • DACL은 Discretionary Access Control List로 접근 권한을 결정하고, SACL은 System Access Control List로 감사 정책을 결정
    • A DACL identifies users and groups who are allowed or denied access to an object
    • SACL defines how access is audited on an object
  •  SDDL 확인 방법
    • SC.EXE 사용
C:\>sc sdshow schedule

D:(A;;CCLCSWLORC;;;AU)(A;;CCLCSWRPDTLOCRRCWDWO;;;BA)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;SY)(A;;CCLCSWLORC;;;BU)S:(AU;FA;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;WD)

## DACL
D:
(A;;CC LC SW LO RC;;;AU)
(A;;CC LC SW RP DT LO CR RC WD WO;;;BA)
(A;;CC DC LC SW RP WP DT LO CR SD RC WD WO;;;SY)
(A;;CC LC SW LO RC;;;BU)

## SACL
S:
(AU;FA;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;WD)



  • AccessChk Tool
C:\Users\Administrator\Downloads\SysinternalsSuite>accesschk.exe -c schedule -l

Accesschk v6.15 - Reports effective permissions for securable objects
Copyright (C) 2006-2022 Mark Russinovich
Sysinternals - www.sysinternals.com

schedule
  DESCRIPTOR FLAGS:
      [SE_DACL_PRESENT]
      [SE_SACL_PRESENT]
      [SE_SELF_RELATIVE]
  OWNER: NT AUTHORITY\SYSTEM
  [0] ACCESS_ALLOWED_ACE_TYPE: NT AUTHORITY\Authenticated Users
        SERVICE_QUERY_STATUS
        SERVICE_QUERY_CONFIG
        SERVICE_INTERROGATE
        SERVICE_ENUMERATE_DEPENDENTS
        READ_CONTROL
  [1] ACCESS_ALLOWED_ACE_TYPE: BUILTIN\Administrators
        SERVICE_QUERY_STATUS
        SERVICE_QUERY_CONFIG
        SERVICE_INTERROGATE
        SERVICE_ENUMERATE_DEPENDENTS
        SERVICE_PAUSE_CONTINUE
        SERVICE_START
        SERVICE_USER_DEFINED_CONTROL
        READ_CONTROL
        WRITE_DAC
        WRITE_OWNER
  [2] ACCESS_ALLOWED_ACE_TYPE: NT AUTHORITY\SYSTEM
        SERVICE_ALL_ACCESS
  [3] ACCESS_ALLOWED_ACE_TYPE: BUILTIN\Users
        SERVICE_QUERY_STATUS
        SERVICE_QUERY_CONFIG
        SERVICE_INTERROGATE
        SERVICE_ENUMERATE_DEPENDENTS
        READ_CONTROL
  SACL:
  [0] : Everyone
          [FAILED_ACCESS_ACE_FLAG]
        SERVICE_ALL_ACCESS

C:\Users\Administrator\Downloads\SysinternalsSuite>accesschk.exe -l ./test.txt

Accesschk v6.15 - Reports effective permissions for securable objects
Copyright (C) 2006-2022 Mark Russinovich
Sysinternals - www.sysinternals.com

C:\Users\Administrator\Downloads\SysinternalsSuite\test.txt
  DESCRIPTOR FLAGS:
      [SE_DACL_PRESENT]
      [SE_SACL_PRESENT]
      [SE_SACL_AUTO_INHERITED]
      [SE_SELF_RELATIVE]
  OWNER: BUILTIN\Administrators
  [0] ACCESS_ALLOWED_ACE_TYPE: NT AUTHORITY\SYSTEM
        FILE_ALL_ACCESS
  [1] ACCESS_ALLOWED_ACE_TYPE: BUILTIN\Administrators
        FILE_ALL_ACCESS
  [2] ACCESS_ALLOWED_ACE_TYPE: CONTOSO\administrator
        FILE_ALL_ACCESS



  • PsService Tool
C:\Users\Administrator\Downloads\SysinternalsSuite>psservice security schedule

PsService v2.26 - Service information and configuration utility
Copyright (C) 2001-2023 Mark Russinovich
Sysinternals - www.sysinternals.com

SERVICE_NAME: Schedule
DISPLAY_NAME: Task Scheduler
        ACCOUNT: LocalSystem
        SECURITY:
        [ALLOW] NT AUTHORITY\Authenticated Users
                Query status
                Query Config
                Interrogate
                Enumerate Dependents
                Read Permissions
        [ALLOW] BUILTIN\Administrators
                Query status
                Query Config
                Interrogate
                Enumerate Dependents
                Pause/Resume
                Start
                User-Defined Control
                Read Permissions
                Change Permissions
                Change Owner
        [ALLOW] NT AUTHORITY\SYSTEM
                All
        [ALLOW] BUILTIN\Users
                Query status
                Query Config
                Interrogate
                Enumerate Dependents
                Read Permissions



Access Rights and Privileges

  • Privilege는 User나 Group에 부여되며, Account가 행할 수 있는 특정 Action을 제한하기 위해서 사용
  • User가 Privileged Operation을 수행하면, System은 User의 Access Token을 확인해서 해당 User가 필요한 Privilege를 가지고 있는지 파악
C:\>whoami /priv

PRIVILEGES INFORMATION
----------------------

Privilege Name                            Description                                                        State
========================================= ================================================================== ========
SeIncreaseQuotaPrivilege                  Adjust memory quotas for a process                                 Disabled
SeMachineAccountPrivilege                 Add workstations to domain                                         Disabled
SeSecurityPrivilege                       Manage auditing and security log                                   Disabled
SeTakeOwnershipPrivilege                  Take ownership of files or other objects                           Disabled
SeLoadDriverPrivilege                     Load and unload device drivers                                     Disabled
SeSystemProfilePrivilege                  Profile system performance                                         Disabled
SeSystemtimePrivilege                     Change the system time                                             Disabled
SeProfileSingleProcessPrivilege           Profile single process                                             Disabled
SeIncreaseBasePriorityPrivilege           Increase scheduling priority                                       Disabled
SeCreatePagefilePrivilege                 Create a pagefile                                                  Disabled
SeBackupPrivilege                         Back up files and directories                                      Disabled
SeRestorePrivilege                        Restore files and directories                                      Disabled
SeShutdownPrivilege                       Shut down the system                                               Disabled
SeDebugPrivilege                          Debug programs                                                     Disabled
SeSystemEnvironmentPrivilege              Modify firmware environment values                                 Disabled
SeChangeNotifyPrivilege                   Bypass traverse checking                                           Enabled
SeRemoteShutdownPrivilege                 Force shutdown from a remote system                                Disabled
SeUndockPrivilege                         Remove computer from docking station                               Disabled
SeEnableDelegationPrivilege               Enable computer and user accounts to be trusted for delegation     Disabled
SeManageVolumePrivilege                   Perform volume maintenance tasks                                   Disabled
SeImpersonatePrivilege                    Impersonate a client after authentication                          Enabled
SeCreateGlobalPrivilege                   Create global objects                                              Enabled
SeIncreaseWorkingSetPrivilege             Increase a process working set                                     Disabled
SeTimeZonePrivilege                       Change the time zone                                               Disabled
SeCreateSymbolicLinkPrivilege             Create symbolic links                                              Disabled
SeDelegateSessionUserImpersonatePrivilege Obtain an impersonation token for another user in the same session Disabled



Security Auditing



감사 정책 접근 경로

  • 시작 > 실행 > secpol.msc
  • 시작 > 실행 > gpedit.msc (Local Group Policy Editor)
  • DC의 경우, 서버 관리자 > 도구 > GPMC



Logon

User Logon

https://techcommunity.microsoft.com/t5/itops-talk-blog/deep-dive-logging-on-to-windows/ba-p/2420705



Winlogon

  • Winlogon은 사용자 logon/logoff  및 lock/unlock 을 처리
  • Winlogon은 Logon 시에 Password 입력을 위해 LogonUI.exe 프로세스를 생성
  • Winlogon 프로세스가 LogonUI.exe 를 통해 획득한 Credential을 Lsass.exe 프로세스에게 전달하면서 사용자 인증 요청
  • Winlogon 프로세스는 System 중요 프로세스로 예기치 않게 종료될 시 Bugcheck 발생
